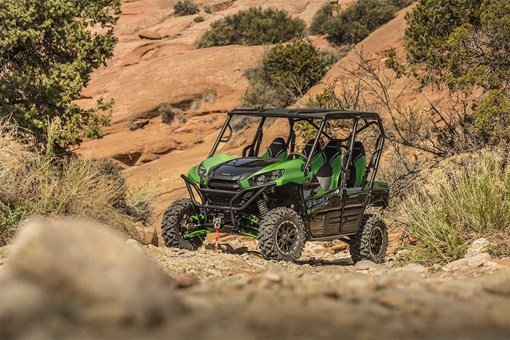

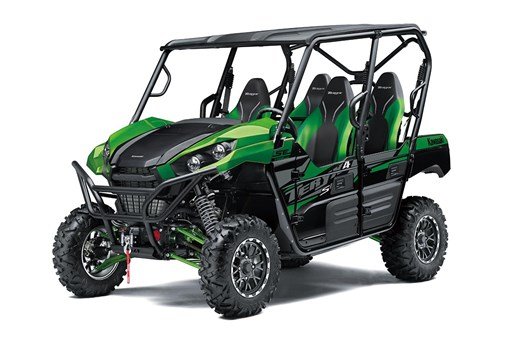

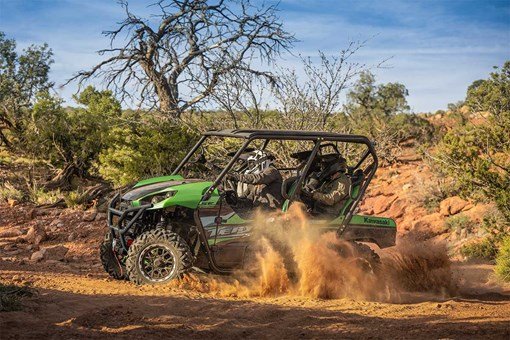

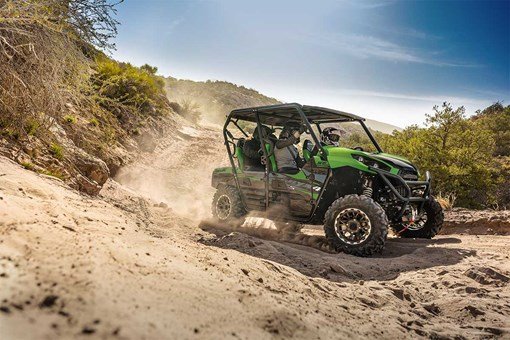

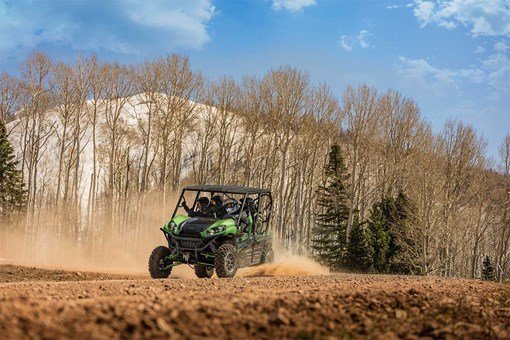

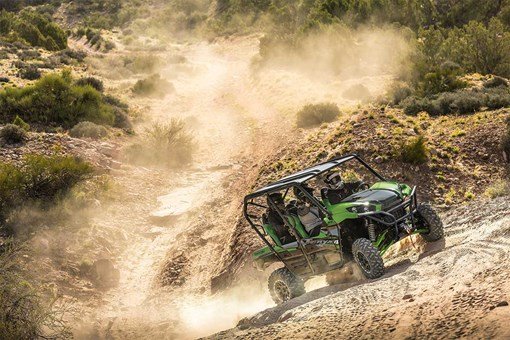

2025 KAWASAKI TERYX4 S LE
UTV | Kawasaki
Stock #BP-R36990
ModelTERYX4 S LE
Specifications
| Frame | Double-X reinforcement type, tubular carbon steel |
| Engine | 783cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin |
| Ignition | Battery & coil (transistorised ignition) |
| Lighting | 4x LED headlights |
| Starting | Electric |
| Steering | Rack and pinion with Electric Power Steering |
| Warranty | 36 months |
| Wheelbase | 2,240 mm (88.2 in) |
| Rear Brake | Enclosed wet multi-plate |
| Rear Tires | MAXXIS Bighorn 2.0 27 x 11R14 6PR |
| Final Drive | 2WD/4WD, shaft |
| Front Tires | MAXXIS Bighorn 2.0 27 x 9R14 6PR |
| Fuel System | Fuel injection: ø36 mm x 2 |
| Lubrication | Forced lubrication, wet sump |
| Seat Height | 865 (F) / 930 (R) mm (34.1 (F) / 36.6 (R) in) |
| Tread (F/R) | 1,400 mm (55.1 in) / 1,330 mm (52.4 in) |
| Curb Weight* | 764 kg (1,684 lb) |
| Front Brakes | Dual ø200 mm discs with two-piston calipers |
| Rake / Trail | 7° / 39 mm |
| Transmission | Dual range CVT with centrifugal clutch and reverse |
| Bore X Stroke | 85.0 x 69.0 mm |
| Fuel Capacity | 30 litres |
| Parking Brake | Enclosed wet multi-plate |
| Road Clearance | 285/310 mm (standard/max preload) (11.2/12.2 in (standard/max preload)) |
| Turning Radius | 5.4 m (17.7 ft) |
| Instrumentation | Multi-function digital meter with digital speedometer, bar-style fuel gauge, clock, odometer, dual trip meters, hour meter, 2WD/4WD indicator, front differential lock indicator light, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, water temperature warning indicator, fuel injection warning indicator, oil pressure warning lamp |
| Towing Capacity | 590 kg (1,300 lb) |
| Seating Capacity | 4 |
| Compression Ratio | 10.7:1 |
| Cargo Bed Capacity | 113 kg (250 lb) |
| Dimensions (Lx Wx H) | 3,185 x 1,590 x 2,045 mm (125.4 x 62.6 x 80.5 in) |
| Steering Angle (L/R) | 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT) |
| Vehicle Load Capacity | 478 kg (1,054 lb) |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
| Cargo Bed Dimensions (Lx Wx H) | 455 x 1,210 x 220 (F) / 125 (R) mm (17.9 x 47.6 x 8.7 (F) / 4.9 (R) in) |
| Rear Suspension / Wheel Travel | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 254 mm (10.0 in) |
| Front Suspension / Wheel Travel | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 272 mm (10.7 in) |
